Press Feed Equipment / Upenders

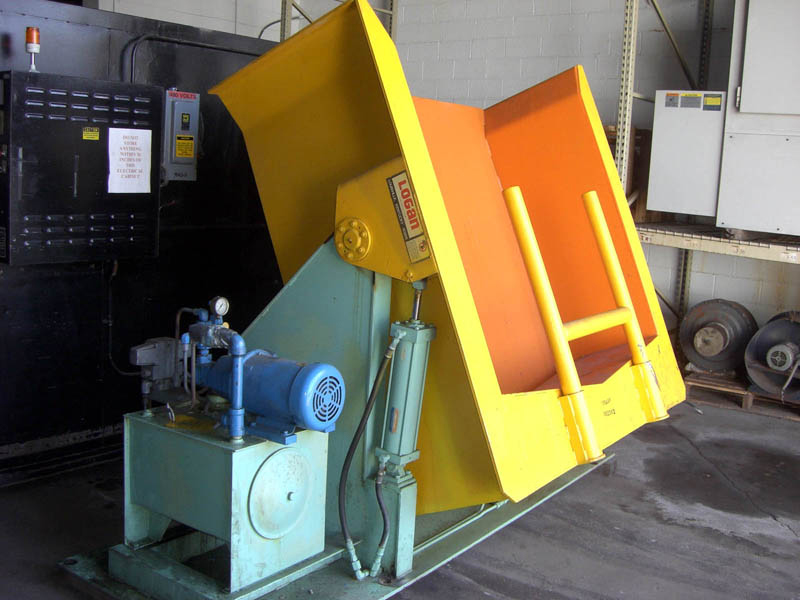

Item #5005 – Logan: 60"O.D. x 24"W – 10,000 Pound Capacity, UNUSED
Condition – 1 Units Available

EQUIPPED WITH:

• SELF CONTAINED HYDRAULICS
• 3 HP BALDOR PUMP MOTOR
• BICKERS BI-DIRECTIONAL PILOT VALVE
• 12 GALLON HYDRAULIC TANK
• ELECTRICS - 220V
• OVERALL DIMS: 48" X 96" X 84" H

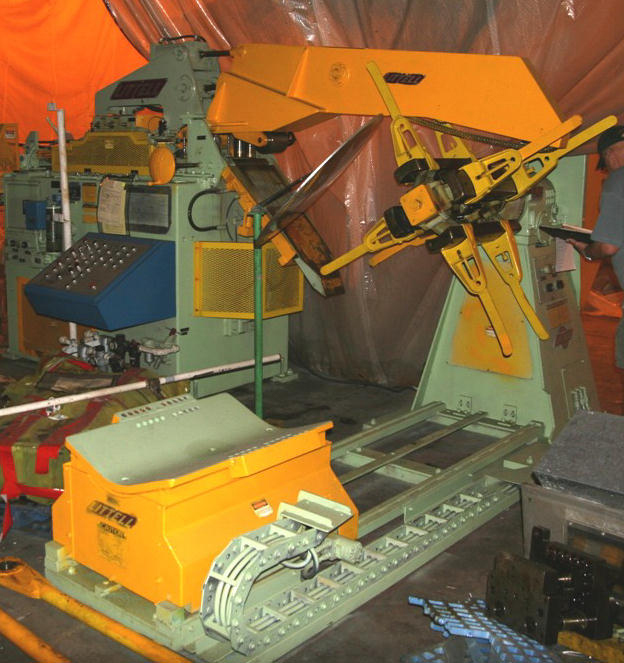

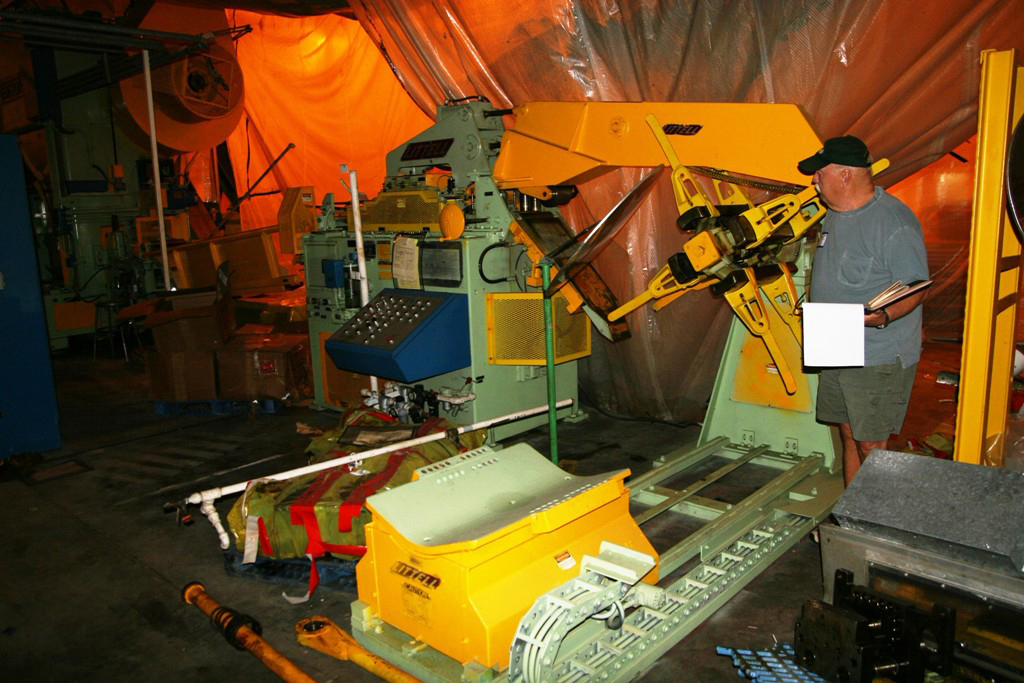

Item #4999 - Littell: 6000 Pound x 24" x .125" Feed Line – 3 Units Available
NEW-1982

SPECIFICATION:

COIL CAR:
WEIGHT CAPACITY...................: 6,000#
COIL OD...........................: 60"
MAX WIDTH.........................: 24"

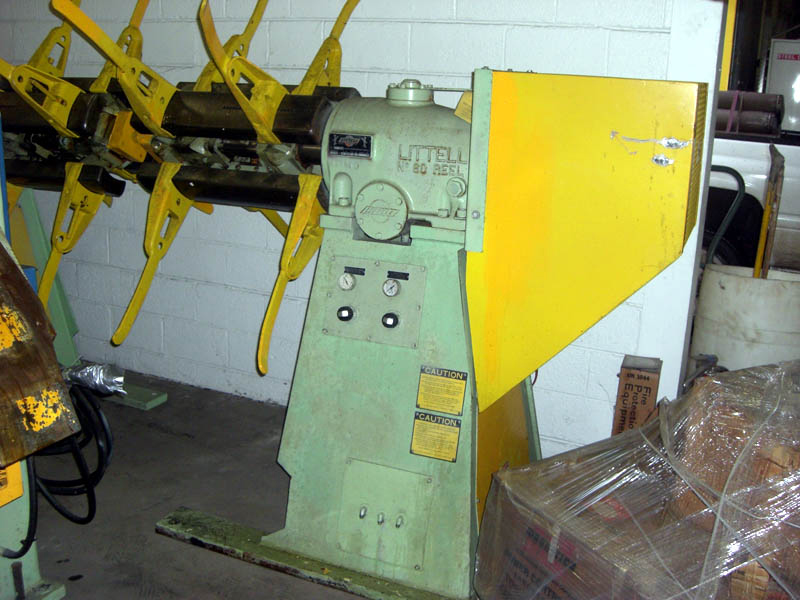

REEL TYPE UNCOILER:
MAX WEIGHT........................: 6,000 #
MAX ID............................: 16-24"
MAX OD............................: 60"
MAX WIDTH.........................: 24"

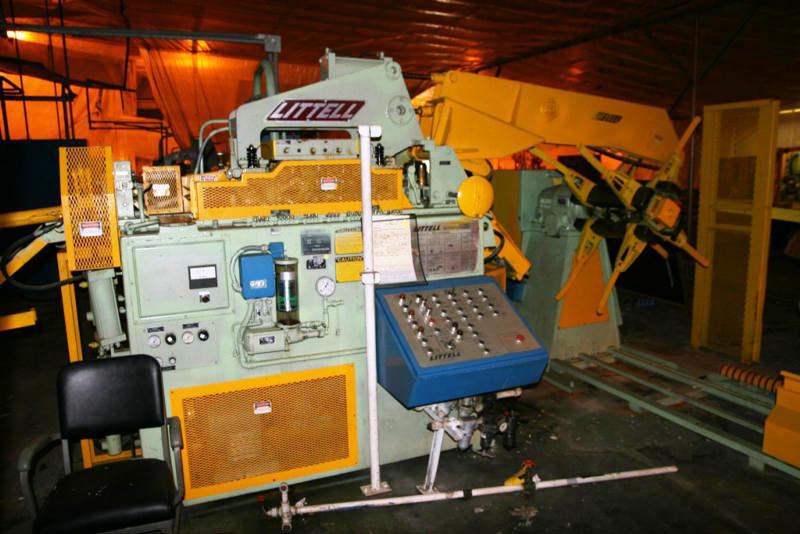

STRAIGHTENER MODEL 412-7:
ROLLS.............................:  7
WIDTH CAPACITY....................: 12"
THICKNESS CAPACITY................: .125"
MAX SPEED.........................: 0-40 FPM VARIABLE SPEED

EQUIPPED WITH:

• LINCOLN CENTROMATIC AUTO LUBE SYSTEMS
• PEELER/FLATTENER/HOLD DOWN ARMS
• HYDRAULIC 4 LEAF EXPANDING MANDREL ON REELS
• HYDRAULIC COIL CAR
• 8 COIL KEEPERS
• FULL CONTROL PANEL INCLUDING:
• FORWARD/REVERSE CTRL
• FLATTENER RAISE & LOWER
• HOLD DOWN - INCH/FORWARD/REVERSE
• PEELER TABLE RAISE & LOWER
• PEELER EXTEND & RETRACT
• SPINDLE ROTATE INCH FORWARD/INCH REVERSE
• COIL CAR IN & OUT
• FEEDER - MANUAL EDGE GUIDES
• SPRING LOADED
• PEELER
• GUARDS

 DIMENSIONS: 152" L x 62" W x 90" Tall
